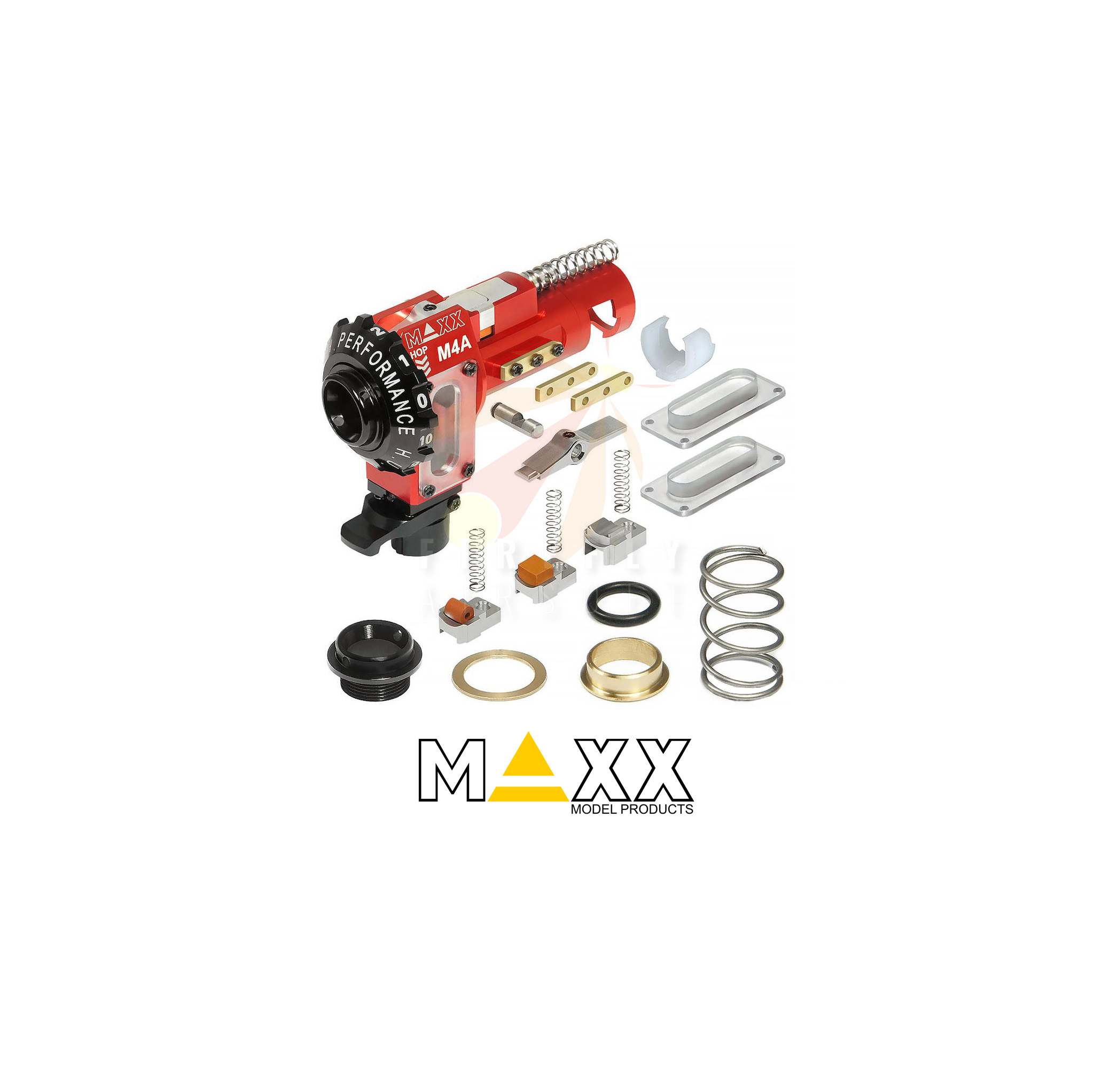

MAXX M4 AEG HOP UP CHAMBER M4A PRO FOR M4/M16 AEG (EXCEPT KWA) (ALUMINUM)

รหัสสินค้า MX-HOP010MA

2,950.00 บาท

จำนวนชิ้น	ส่วนลดต่อชิ้น	ราคาสุทธิต่อชิ้น
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท	{{number_format(price_row.price,2)}} บาท



คงเหลือ	ไม่จำกัด ชิ้น
จำนวน (ชิ้น)	- +
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
บัตรประชาชน บุ๊คแบ๊งค์ คุ้มครองโดย LnwPay

คุยกับร้านค้า	โทร 0824464556 profile.php?id=100064030628226
{{ size_chart_name }}
หมวดหมู่	MAXX
สภาพ	สินค้าใหม่
เพิ่มเติม
สภาพ	สินค้ามือสอง
เกรด
สถานะสินค้า
ระยะเวลาจัดเตรียมสินค้า
เข้าร่วมโปรโมชั่น


Share :

รายละเอียดสินค้า
วิธีการสั่งซื้อ
สินค้าที่เกี่ยวข้อง

รายละเอียดสินค้า

ไฮไลท์

MAXX M4 AEG HOP UP CHAMBER M4A PRO FOR M4/M16 AEG (EXCEPT KWA) (ALUMINUM)

MX-HOP010MA

CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series.

The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.

The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.

More than that, the Hopup Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.

***The UV LED Tracer and Electronic Module are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)

***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)

***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

ข้อมูล

น้ำหนัก

บาร์โค้ด

ลงสินค้า

อัพเดทล่าสุด

รายละเอียดสินค้า

MAXX M4 AEG HOP UP CHAMBER M4A PRO FOR M4/M16 AEG (eXCEPT kwa) (aLuminum)

CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series.

The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Hopup Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.
More than that, the Hopup Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.

***The UV LED Tracer and Electronic Module are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

Specification :

Overall Length: 51mm

Overall Height: 37.75mm

Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm

Hub Outer Diameter (to fit into Outer Barrel): min 12mm

Hub Inner Diameter (to fit Nozzle): max 8.3mm

Feeder Outer Diameter (to fit magazine): min 9.25mm

Feeder Length (to fit magazine): max 6.25mm

Material: Aluminum 6061

Features :

Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
Precision rotary dial design for fine hopup adjustments
Re-engineered the hopup levers and nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
Accepted the nozzle length from 21.00mm
Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
Compatible with any 11mm inner bore AEG Gearbox/HPA Engine nozzle outlets
Specially designed with BB Latching System to prevent dropping BBs after removing the magazine, Manually opened to release BBs from inside hopup chamber by hand

CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit is precisely machined to perform accurately and consistently on Tokyo Marui (include G&G, KRYTAC, except KWA) Standard M4/M16 AEG series rifles.

The Hopup Chamber M4A unit is built with an aluminum rotary dial knob for fine hopup adjustments, the precision hopup lever and 4mm bucking nubs to perform best with R-Hop and standard-hop to keep the BB shooting accurately and consistently on every single shot.The Hopup Chamber M4A unit is designed to accept 21.00mm to 21.25mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BBs during use.

The Hopup Chamber M4A unit is wisely equipped with an interchangeable Inlet Adaptor OD11mm to ensure the hopup unit is inserted exactly in the center of the 11mm inner bore AEG Gearbox/HPA Engine nozzle outlet without wobbling. Also mounted the removable CNC brass side wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin locking C-clip to hold the inner barrel tightly in place without wobbling and twisting.

Additionally, the Hopup Chamber M4A Pro unit is specially designed with a new BB Latching System to prevent BBs from dropping after removing the magazine. The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber.

Manufacturer: Maxx Model

Specifications:

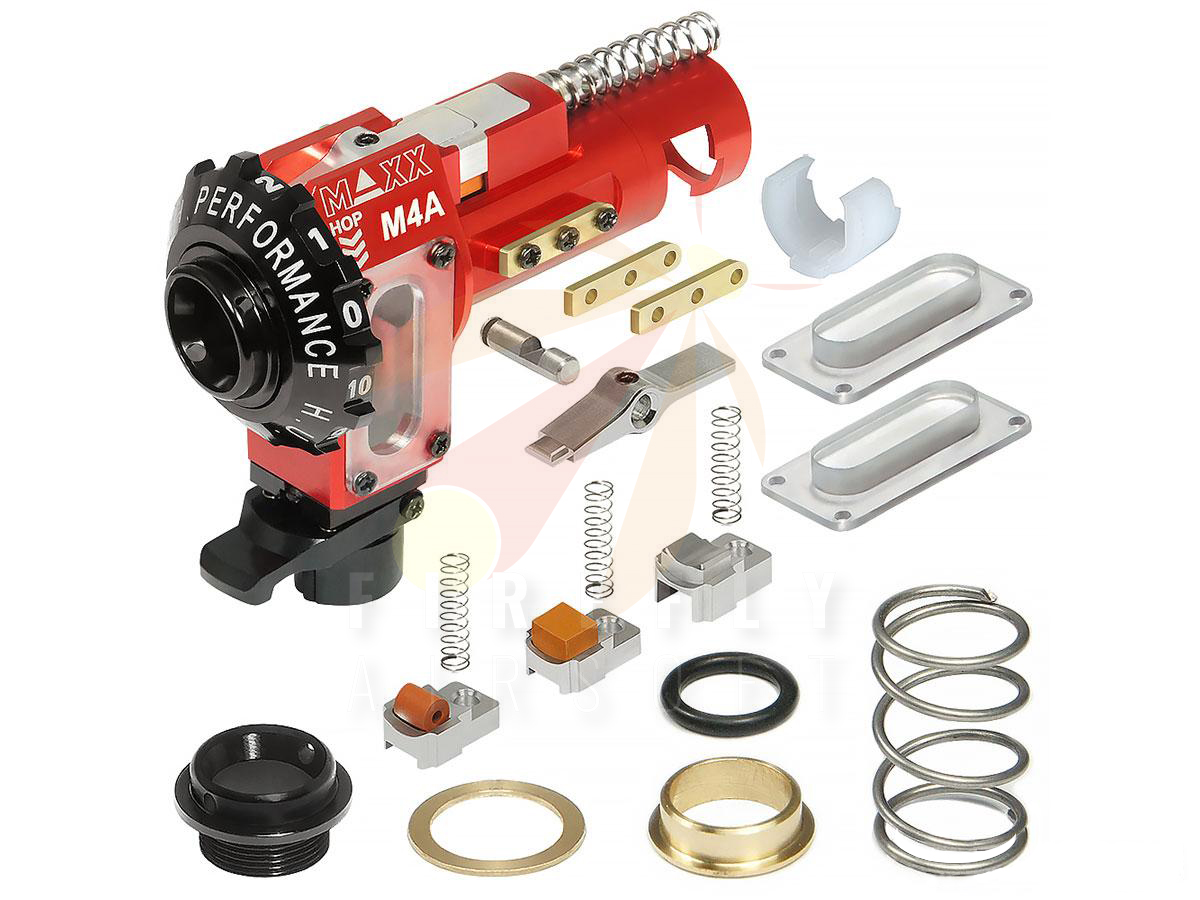

Hopup Kit Includes:

· 1 x CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit

· 2 x CNC Acrylic Side Cover

· 2 x CNC Brass 2.5mm Side Wing

· 1 x CNC Steel Pivot Pin

· 1 x CNC Aluminum Hopup Lever

· 1 x CNC Aluminum Soft Round Nub

· 1 x CNC Aluminum Soft Flat Nub (4mm)

· 1 x CNC Aluminum Hard Concave Nub (4mm)

· 3 x Steel Nub Spring

· 1 x CNC Steel Spring Guide

· 1 x Steel Upper Compression Spring

· 1 x Steel Center Compression Spring

· 1 x CNC Delrin Locking C-Clip

· 1 x CNC Brass Barrel Spacer

· 1 x Brass Barrel Spacer Holder O-ring

· 1 x CNC Aluminum Rotary Dial Knob

· 1 x CNC Aluminum Inlet Adaptor (OD11mm)

· 1 x CNC Brass Inlet Spacer
Overall Length: 51.65mm
Overall Height: 37.75mm
Inlet Adaptor Outer Diameter (to fit into Gear Box): 11mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 8mm
Feeder Outer Diameter (to fit magazine): 8.85mm
Feeder Length (to fit magazine): 6mm
Application: For most Tokyo Marui (include KRYTAC, except KWA) M4/M16 standard AEG version 2 gear box
Material: Aluminum 6061

Test Results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!
Disclaimer: Professional installation highly recommended. Please use discretion when installing custom parts as fit and compatibility may vary. Modification may be required. Professional installation recommended.
